A2 Light/Medium Runner - Racing spinnakers
AWS 8-18 kts
Mid Girth 100-105% of foot length
Rotates to windward of the forestay as the sheet is eased

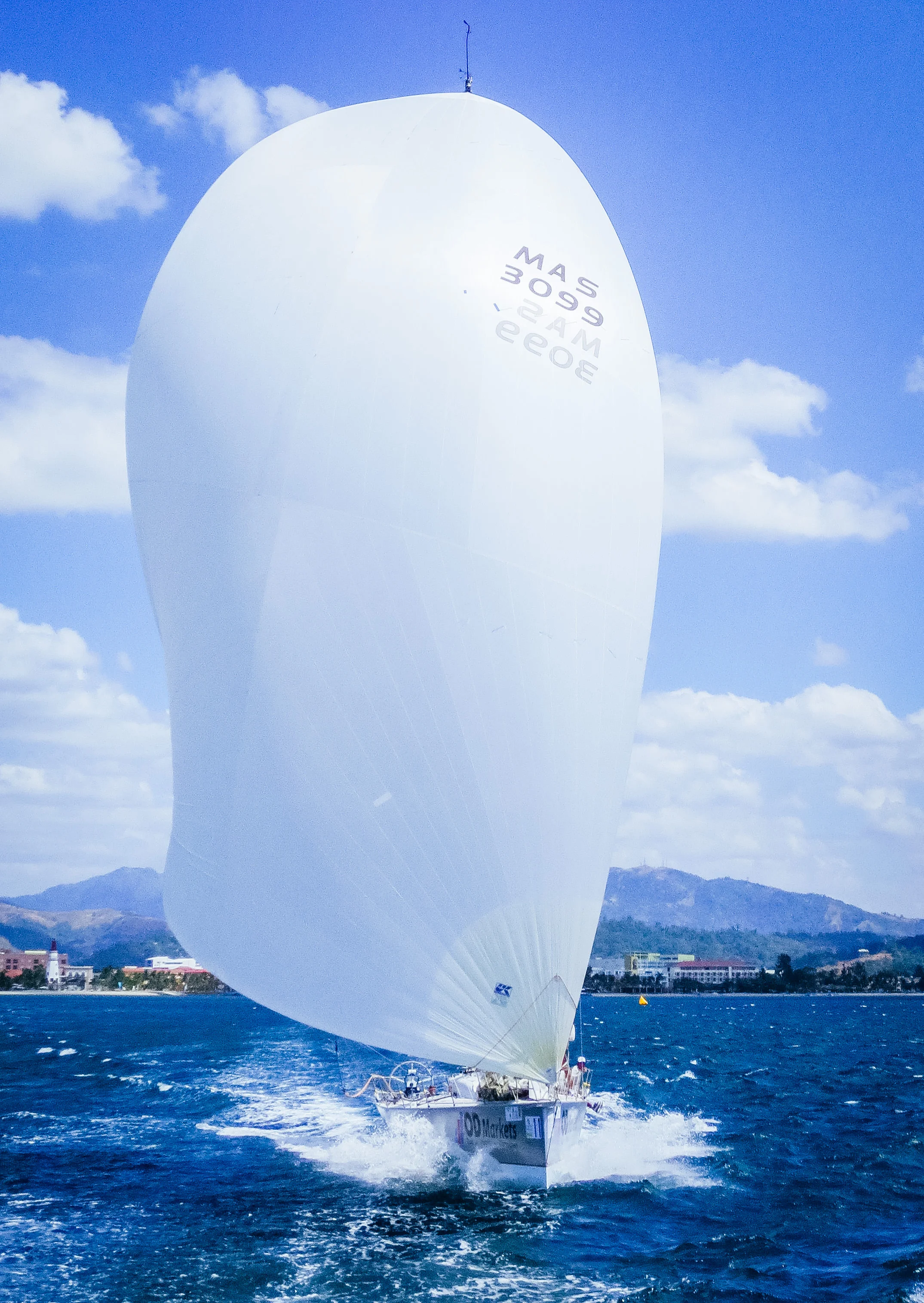

The A2 is the go-to sail on most boat. Sprit boats never run dead down wind because the asymmetrical spinnaker gets blanketed behind the main sail if they sail below 155 degrees AWA. For an asymmetric spinnaker flown off of a centerline pole, “running” is when the boat sails with the apparent wind angle greater than 90 degrees until the boat is sailing as deep as 155 degrees AWA. An A2 (light/medium runner) is used in apparent wind speeds of 8-18 knots. To sail help sail as low as possible, UK Sailmakers designs these sails to be full-sized with a full entry and a high clew so that the middle of the sail will flatten out and rotate to windward of the headstay to get as much of the sail as possible out of the wind shadow of the mainsail.
The heart of faster spinnakers is the construction method. The panel layout UK Sailmakers uses is called Matrix, which is a full radial layout that features narrow panels, each oriented to better align the threads in the cloth with the primary loadpaths in the spinnaker. This is the most effective way to reduce distortion and make the strongest sail for its weight.
Each panel is shaped on all four sides in order to create a smooth round sail. For one sail be so versatile, it needs to hold its shape without distorting. Distortion becomes most obvious when close reaching. Spinnakers made with generic nylon cloth stretch in the middle, causing their leeches to harden or hook; which reduces driving power, creates drag, and increases heeling. The only way to prevent distortion, without using too heavy a fabric, is to use performance nylon spinnaker cloth like those made under the Superkote and Airx names. These materials have the same strength and stretch resistance of one weight heavier standard nylon.
